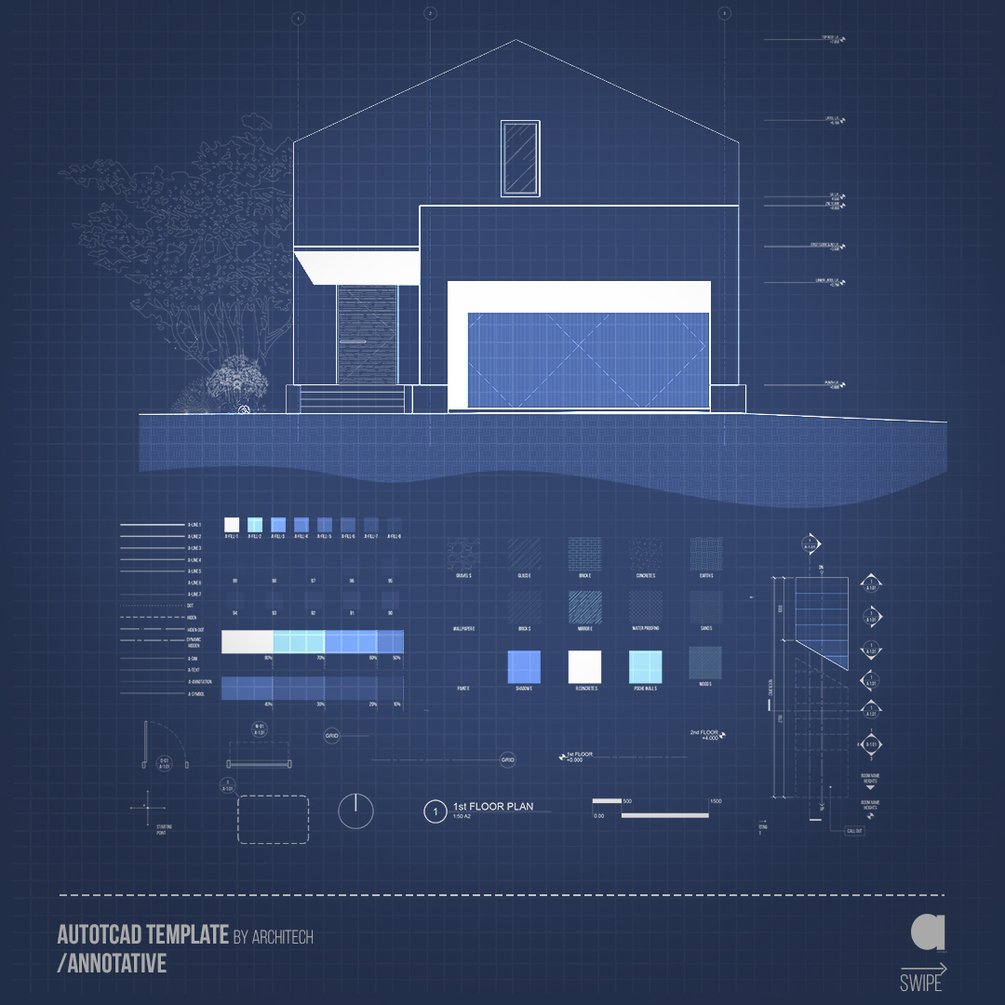

AutoCAD template by Architech (Annotative)

UPDATE: Updated version will be launched by this month's end!

+ Update will include

• Updated Templates
• Annotative templates in Meter, CM, MM, and imperial units (Feet& Inch)
• Page setup with Imperial and metric units.
• Updated CTB files.

What's Included?

#How to start (PDF)

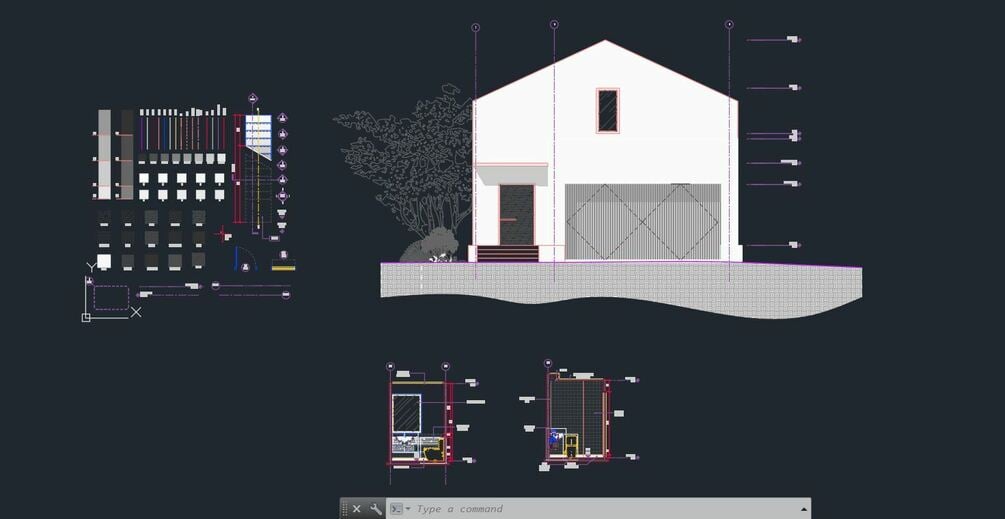

01 | Autocad Drawing Template (.dwt File) by Architech

• Best Choice of Line type & Line Weight
• Best Choice of Color Interface (layers)
• Annotative & Dynamic Blocks
• Annotative Text
• Annotative Leader (Callout)
• Annotative Pattern type (Hatch) with good scale selection

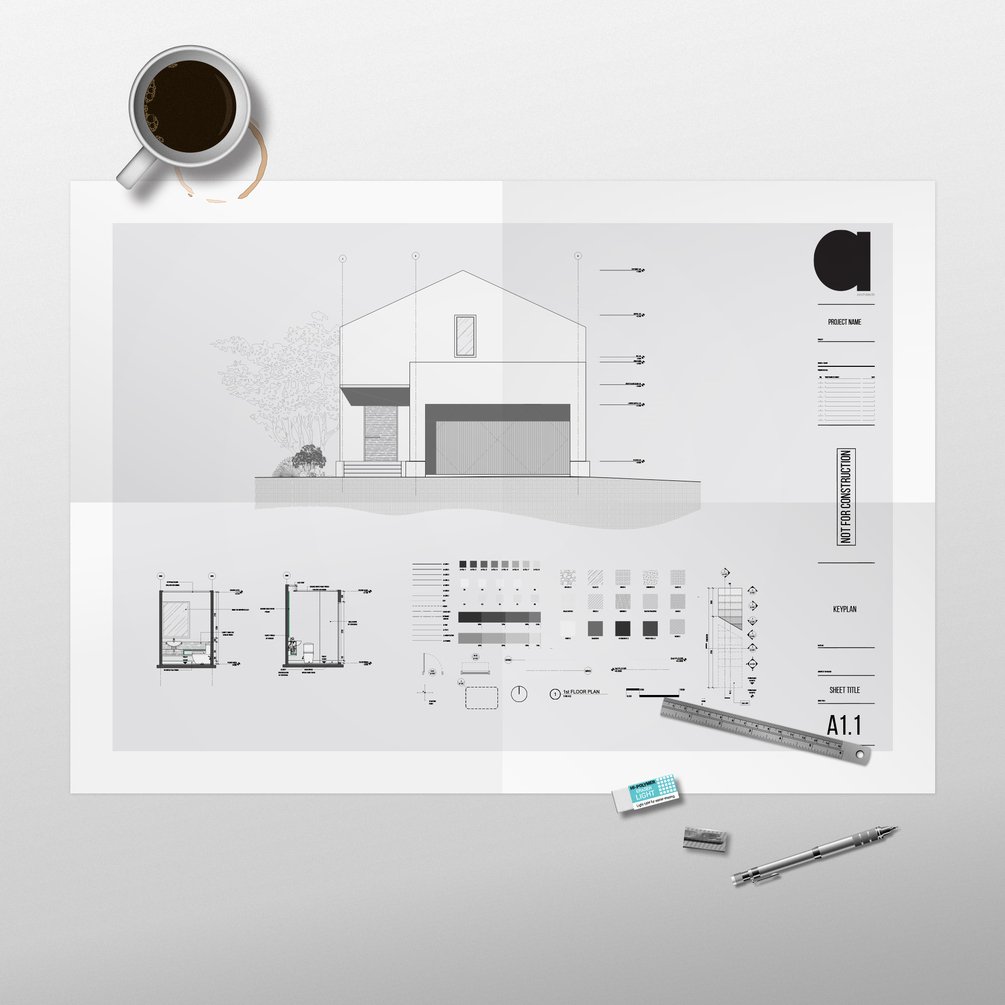

• Page setup with Title Blocks for A1/A2/A3 Pepper size

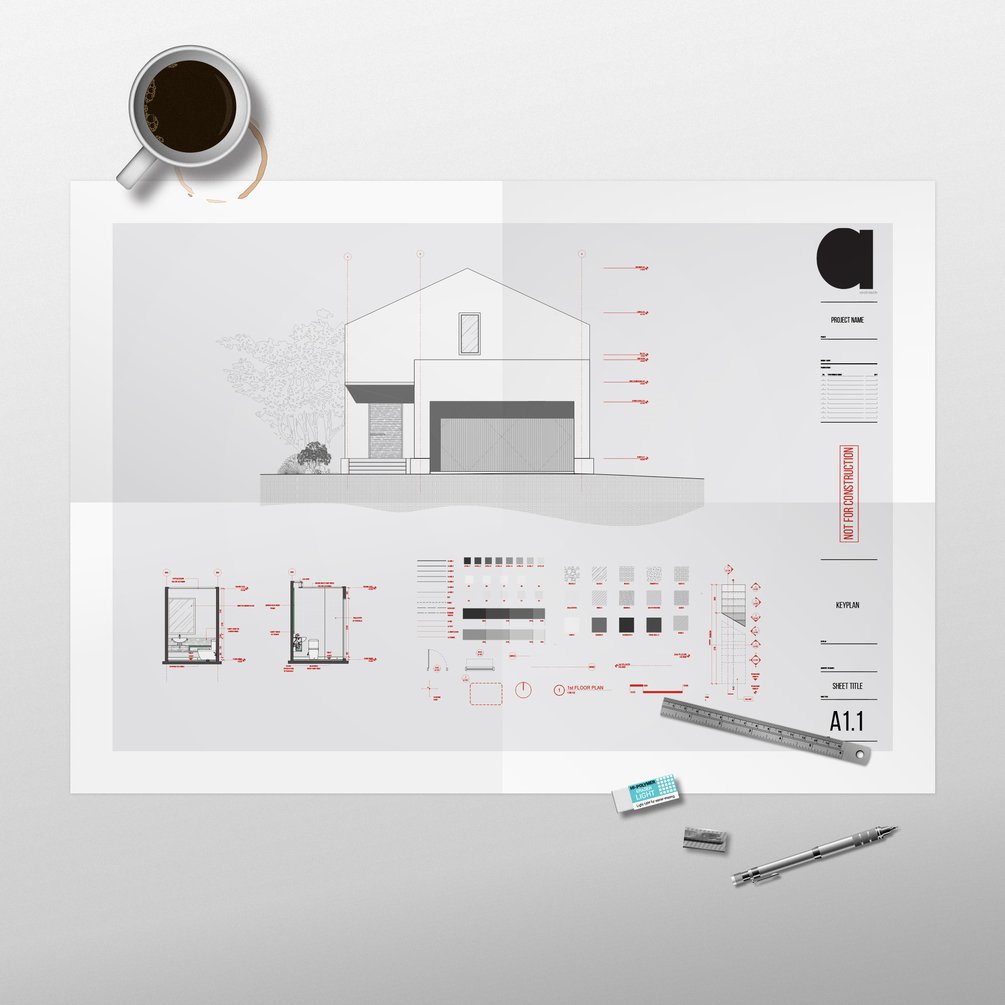

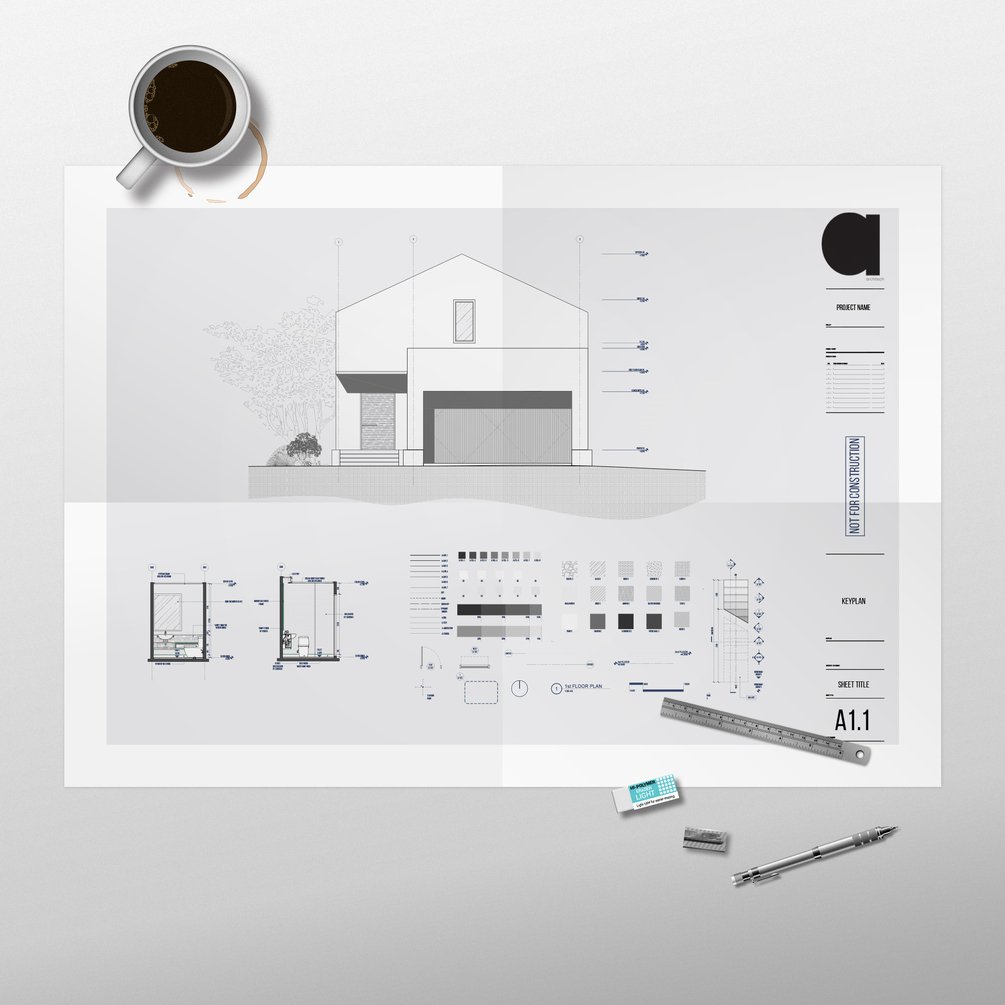

• Plot Style with 4 variants color pick (Blue/Red/Black/Yellow)

02 | Sheet set Package (.dst File) by Architech

• Sheet set File (.dst) including several layouts integrated with title blocks and page setup
• Table of content (automatically updated) synchronized with sheet set
• Sheet title, sheet number automatically synchronized with sheet set

03 | Supplement Package (.zip File) by Architech

• Sample of Architectural Drawings.

NOTE:

This file made by metric unit. These files are designed to be used with the 2012 (and newer) versions of AutoCAD and AutoCAD LT. Although it's possible they may also work with earlier versions and/or other CAD programs designed to read AutoCAD files we can't guarantee they will.
